This article expects that you have your development enviorment set up and you have installed Eclipse and Android SDK and you have developed at least an application in android and are aware of the structure of the android application.

Create a new android application using the details as below:

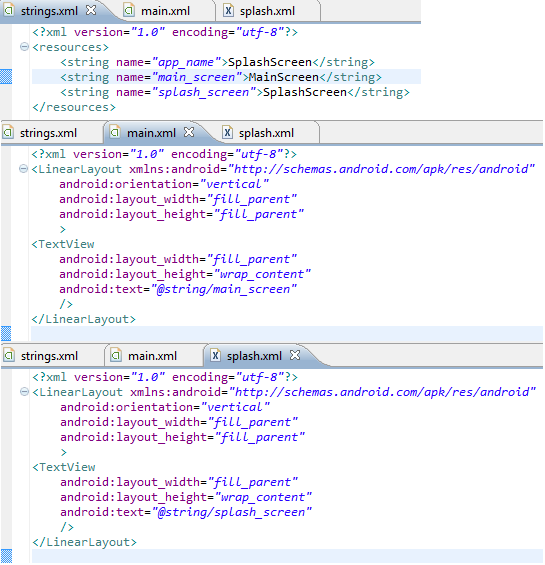

Add a new XML File called splash.xml in layout folder where you already have main.xml. Then open strings.xml (present in values folder) and splash.xml and main.xml (present in layout folder) and add the following code to it.

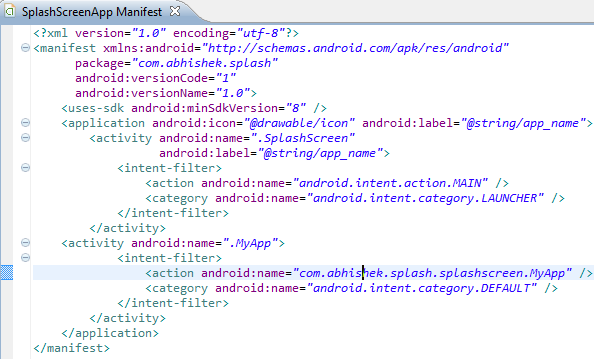

Open AndroidManifest.xml and add and change the entry for the intents

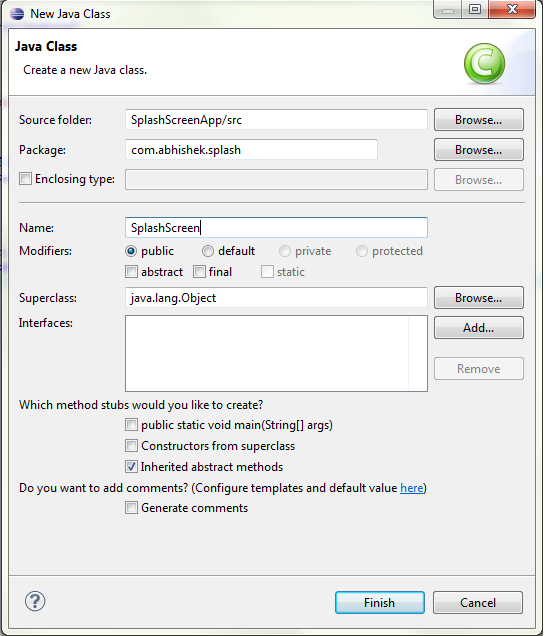

Add a new java class SplashScreen in the source

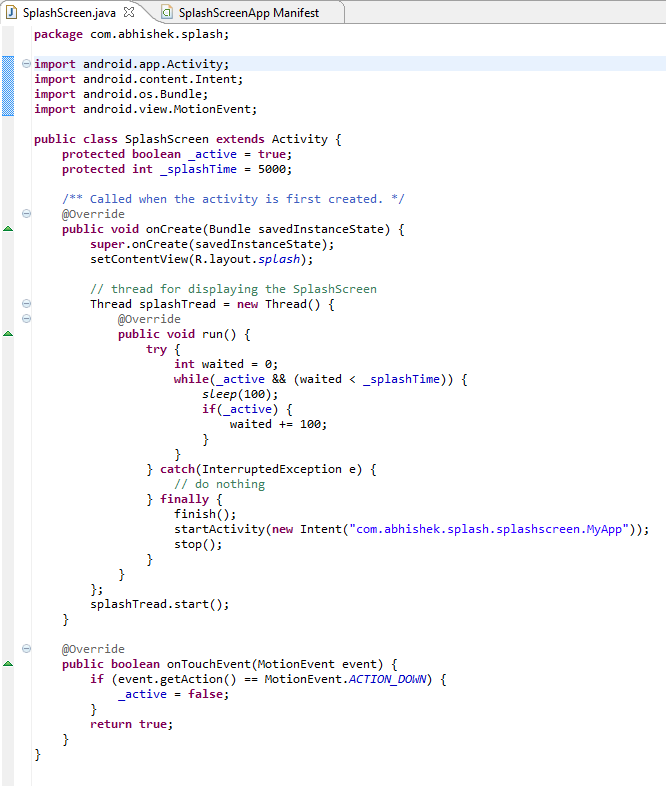

And then open SplashScreen.java and change the code to below:

Now just run the application as Android application and you will see the splash screen for 5 seconds (5000 ms) as specified in SplashScreen.java

Hope you like this…..let me know your comments 🙂

If you have any questions then please feel free to ask me.
